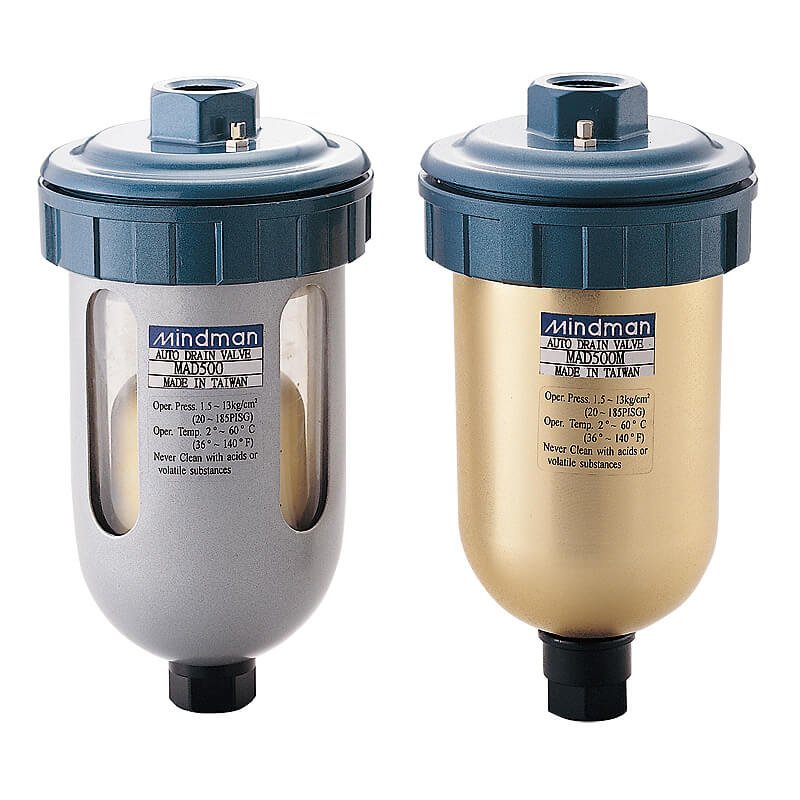

Mindman MAD500 Series: Auto Drainer(Float Type) – MAD500
$60.75
Auto Drainer(Float Type), Water Trap Material: PC Clear, Inlet: Rc1/2, Drain Port: Rc3/8, Port Thread: Rc Thread(G/NPT Available)
10000 in stock
Features
●Large-bore inlet passage so particles and rust do not collect in dead corners.
●The aluminum-alloy casting is specially anti-corrosion treated and top-coated, resisting acids/alkalis without corroding.
●A large-capacity dirt-storage trap holds more rust and dirt than typical drains.
●The water trap is made of optical-grade clear polycarbonate and does not crack.
●The float’s stainless rod is embedded and never detaches.
●Large float with strong buoyancy for sensitive control.
●A large water trap stores and discharges more water, reducing discharge frequency and extending drain life.
●The seal ring uses high-grade VITON rubber, wear-resistant and leak-free, lasting over 10¡Á longer than NBR.
| Item | Specification |
|---|---|
| Dimensions | Height 18 cm (7"), Diameter 10 cm (4") |
| Inlet | Rc1/2 |
| Outlet | Rc3/8 |
| Operating pressure range (※) | 0.13~1.3 MPa |
| Ambient temperature | 2~60°C (36~140℉) |
| Discharge per operation | 60 cc per on time. Max. operation 25 times per minute. |
| Weight | 780 g |
| Remark | ※1. Port thread G, NPT are also available. ※2. Standard unit contains semi-auto-drain function when operating pressure below 0.05 MPa. |
