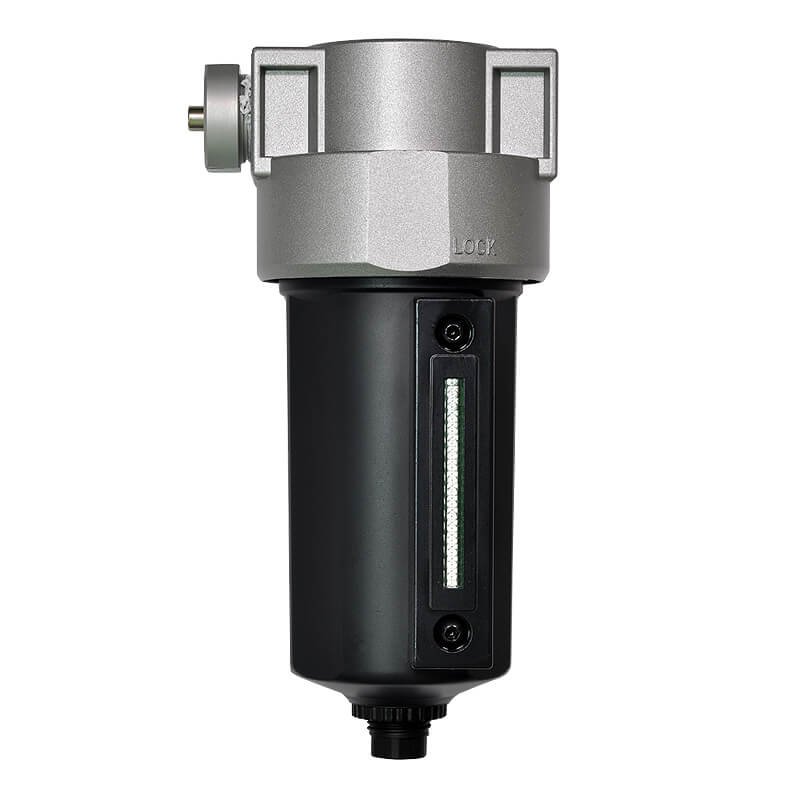

Mindman MAD401H Series: Auto Drainer – MAD401H-15A-NPT

Name: Mindman MAD401H Series: Auto Drainer - MAD401H-15A-NPT - Mindman
SKU: MAD401H-15A-NPT
Price: 60.75 USD
Availability: InStock

SKU: MAD401H-15A-NPT

$60.75

Auto Drainer, Port Diameter Code: 15A, Port Diameter Size: 1/2, Appearance Color: Black&Silver, Port Thread: NPT Thread

10000 in stock

Features
● Port Diameter Size: 1/2,
●Operating pressure range: 0.1~1.3 MPa, withstand pressure: 2 MPa.

Item	Specification
Bore No.	15A
Port size	1/2
Medium	Air
Operating pressure range (※)	0.1~1.3 MPa
Proof pressure	2.0 MPa
Ambient temperature	−5~+60°C (No freezing)
Weight	519 g
Remark	※ Standard unit contains semi-auto-drain function when operating pressure below 0.05 MPa.

MAD401H Order Example
