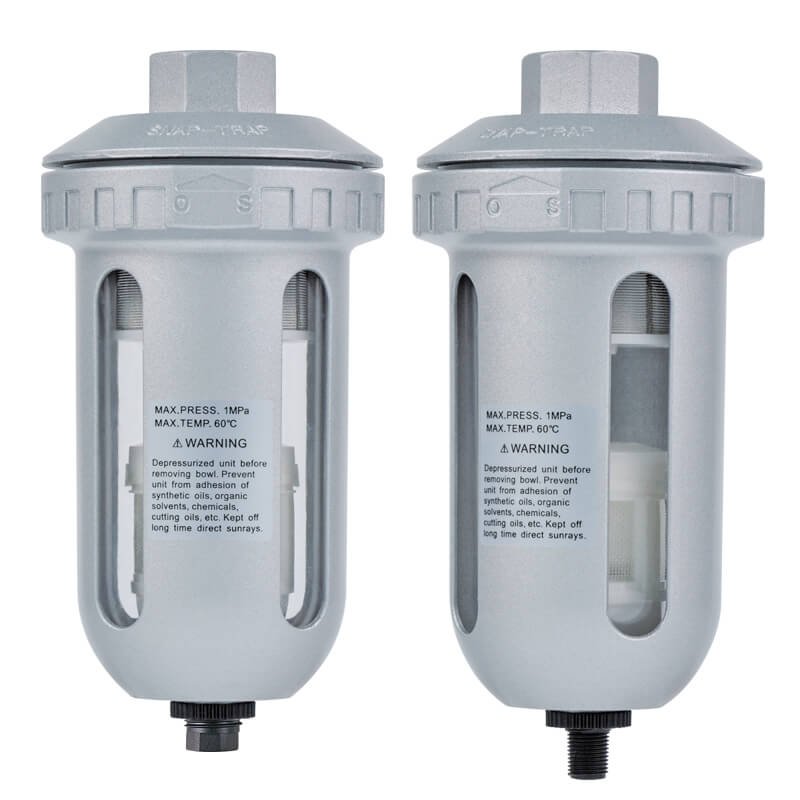

Mindman MAD400 Series: Auto Drainer – MAD400-10A-D3

Name: Mindman MAD400 Series: Auto Drainer - MAD400-10A-D3 - Mindman
SKU: MAD400-10A-D3
Price: 51.75 USD
Availability: InStock

SKU: MAD400-10A-D3

$51.75

Auto Drainer, Port Diameter Code: 10A, Port Diameter Size: 3/8, Auto Drain Valve Type: Female-Thread Type(MADV400-WA), Port Thread: Rc Thread

10000 in stock

Features
● Port Diameter Size: 1/4, 3/8, 1/2,
●Operating pressure range: 0.15~1 MPa, withstand pressure: 1.5 MPa.

Item	Specification
Bore No.	8A, 10A, 15A
Port size	1/4, 3/8, 1/2
Medium	Air
Operating pressure range (※)	0.15~1 MPa
Proof pressure	1.5 MPa
Ambient temperature	−5~+60°C (No freezing)
Weight	480 g
Remark	※ Standard unit contains semi-auto-drain function when operating pressure below 0.05 MPa.

MAD400 Order Example
