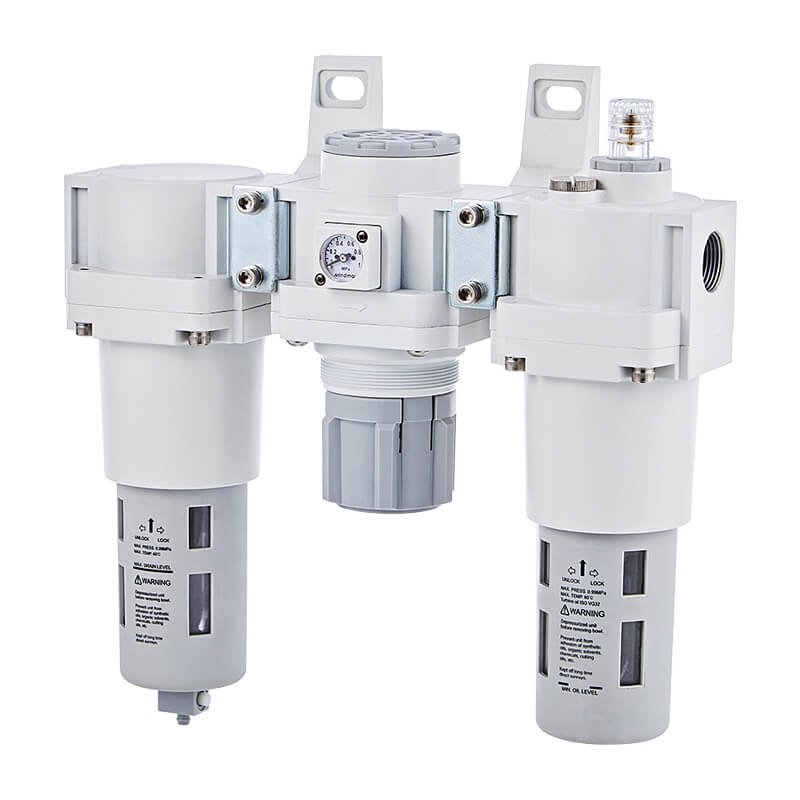

Mindman MACT501 Series: Pressure Gauge – PG-20
$112.00
Pressure Gauge, Applicable: ¸ÃF.R.L. Set Standard With Metal, Spec: PG-20
10000 in stock
Features
● Components: MAF501, MAR501, MAL501,
●Port size: 3/4, 1, operating pressure range: 0.05~1 MPa,
●Withstand pressure: 1.5 MPa, PC/nylon/metal bowl.
| Item | Specification |
|---|---|
| Components | MAF501, MAR501, MAL501 |
| Bore No. | 20A, 25A |
| Port size | 3/4, 1 |
| Medium | Air |
| Operating pressure range | PC, Nylon bowl: 0.05~1 MPa Metal bowl: 0.05~1.5 MPa |
| Proof pressure | PC, Nylon bowl: 1.5 MPa Metal bowl: 2 MPa |
| Regulated pressure range | 0.05~0.85 MPa |
| Ambient temperature | −5~+60°C (No freezing) |
| Filter element | 40 µm |
| Drain capacity | PC, Nylon: 75 cm³, Metal: 70 cm³ |
| Lubricating oil capacity | 200 cm³ |
| Min. flow for oil drip | 25 l/min, 33 l/min |
| Recommended lubricating oil | Turbine oil ISO-VG32 |
| Standard attachment | Pressure gauge (PG-20), T type bracket |
| Weight | PC, Nylon bowl: 4200g / Metal bowl: 4440g |
| Remark | ※1. Standard unit contains semi-auto-drain function when operating pressure below 0.05 MPa. ※2. Choose auto-drain FMRF300, the pressure range is 0.15~1 MPa. |
