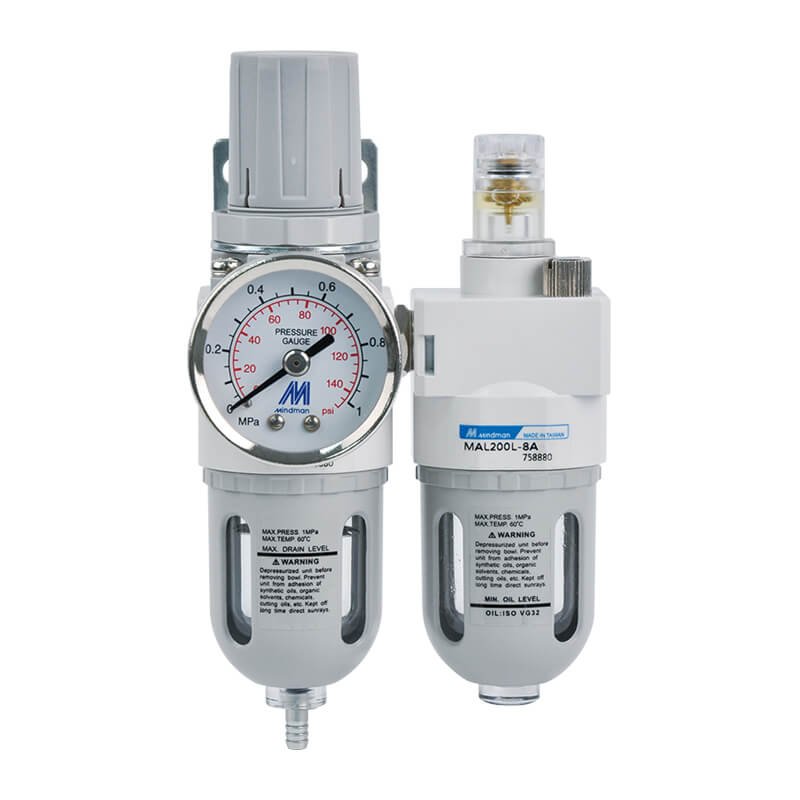

Mindman MACP200 Series: Air Combination Unit(F.R.L. Set) – MACP200-6A-5u-NPT

Name: Mindman MACP200 Series: Air Combination Unit(F.R.L. Set) - MACP200-6A-5u-NPT - Mindman
SKU: MACP200-6A-5u-NPT
Price: 89.60 USD
Availability: InStock

SKU: MACP200-6A-5u-NPT

$89.60

Air Combination Unit(F.R.L. Set), Product Type: Standard, Port Diameter: 1/8, Bowl Material: PC Bowl, Flow Direction: Left¡úRight, Filtration Rating: 5¦Ìm, Bracket: L Type Bracket, Port Thread: NPT Thread

10000 in stock

Click to view the Mindman MACP200 catalog.

Features
●Extended-bowl type, components: MAFR200L, MAL200L,
●Port size: 1/8, 1/4, operating pressure range: 0.05~1 MPa,
● Withstand Pressure: 1.5 MPaII

Specification

Item	Specification
Components	MAFR200, MAL200
Bore No.	6A, 8A
Port size	1/8, 1/4
Medium	Air
Operating pressure range (*1,2)	0.05~1 MPa
Proof pressure	1.5 MPa
Regulated pressure range	0.05~0.85 MPa
Ambient temperature	−5~+60°C (No freezing)
Filter element	Standard: 40µm Option: 5µm
Drain capacity	9.5 cm³
Lubricating oil capacity	20 cm³
Min. flow for oil drip	35 l/min, 50 l/min
Recommended lubricating oil	Turbine oil ISO-VG32
Attachment	Pressure gauge (PG-40), bracket
Weight	432g
Remark	1. Semi-auto drain (N.O. type): The drain port automatically discharges accumulated water when pressure is below 0.05 MPa. 2. Auto drain (N.C. type): Residual water remaining in the bowl after air shut-off or drainage is normal. 3. Poor air quality may cause product malfunction. Installing an upstream pre-filter (e.g., 40 µm) is recommended. 4. Bowls for semi-auto drain and auto drain valve (D) are not interchangeable.

Order Example

MACP200 Order Example

Mindman MACP200 Series: Air Combination Unit(F.R.L. Set) – MACP200-6A-5u-NPT
