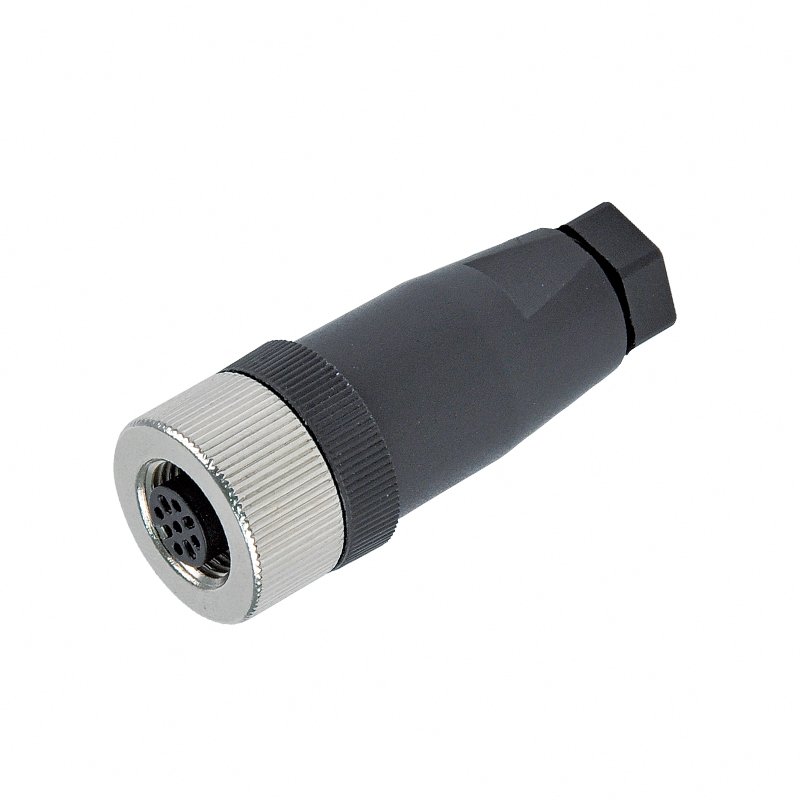

    Mindman M124A-SF Series: Connector(M12 Female A-coded) - M124A-SF

    Mindman M124A-SF Series: Connector(M12 Female A-coded) – M124A-SF

    SKU: M124A-SF

    $15.00

    Connector(M12 Female A-coded), Fitting Spec: M12 4Pin A-coded, Rated Voltage: 250V DC/AC, Rated Current: 4A, Suitable Cable OD: ø5.5mm, Protection Rating: IP67, Housing Material: Nylon

    10000 in stock

    Features
    ●M12, 5 Pin, A-coded,
    ● Rated Voltage: 125V DC/AC,
    ●Rated current: 3A, connector body: PVC.

    Item Specification
    Number of contacts 4
    Code A
    Rated voltage 250V DC/AC
    Rated current 4A
    Temperature −25°C~+80°C (No freezing)
    Protection class of contact IP 67
    Suitable for AWG 22AWG
    Seals for cable OD φ5.5 mm
    Housing material Nylon
