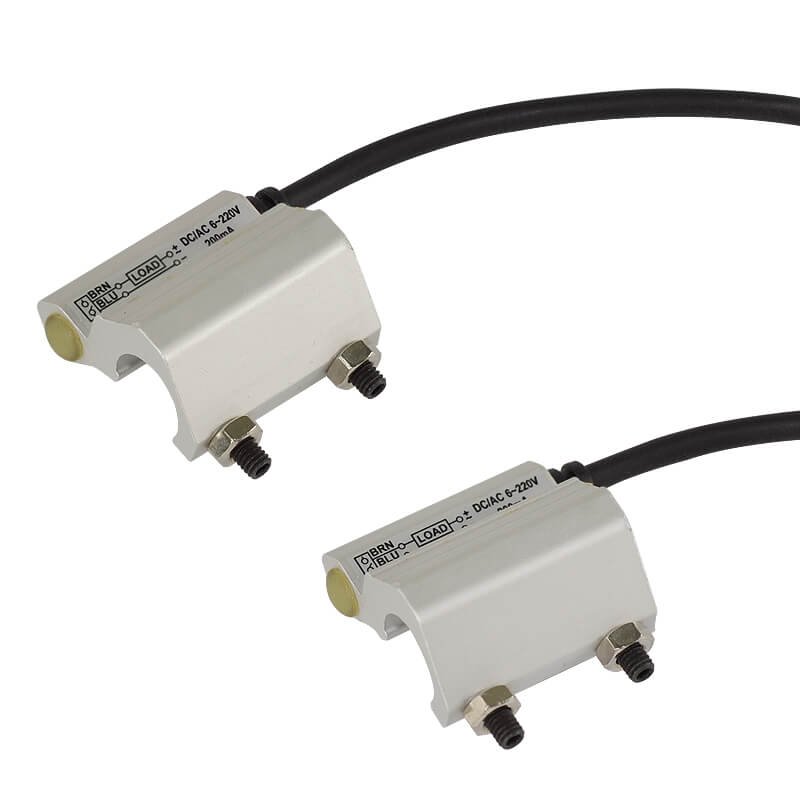

Mindman LN01A Series: Sensor(Reed) – LN01A-QD

Features
● Wiring Method LN0*A: 2-Wire, LN0*A-N, LN0*A-P: 3-Wire
● Switch Logic LN0*A: N.O. Type, LN0*A-N, LN0*A-P: Solid-State,N.O. Type
● Contact Type LN0*A: Reed, LN0*A-N: Solid-State NPN, LN0*A-P: Solid-State PNP
● Operating Voltage Range LN0*A: 5~240V DC/AC, LN0*A-N, LN0*A-P: 10~30V DC
● Max Switching Current LN0*A: 100mA max. LN0*A-N, LN0*A-P: 200mA max.
● Contact Capacity LN0*A: 10W max. LN0*A-N, LN0*A-P: 6W max. (¡ù1)
● Current Consumption LN0*A-N, LN0*A-P: OFF:7mA(24V)/ ON:20mA(24V) max.
● Internal Voltage Drop LN0*A: 3V max. LN0*A-N, LN0*A-P: 0.5V@200mA max.
