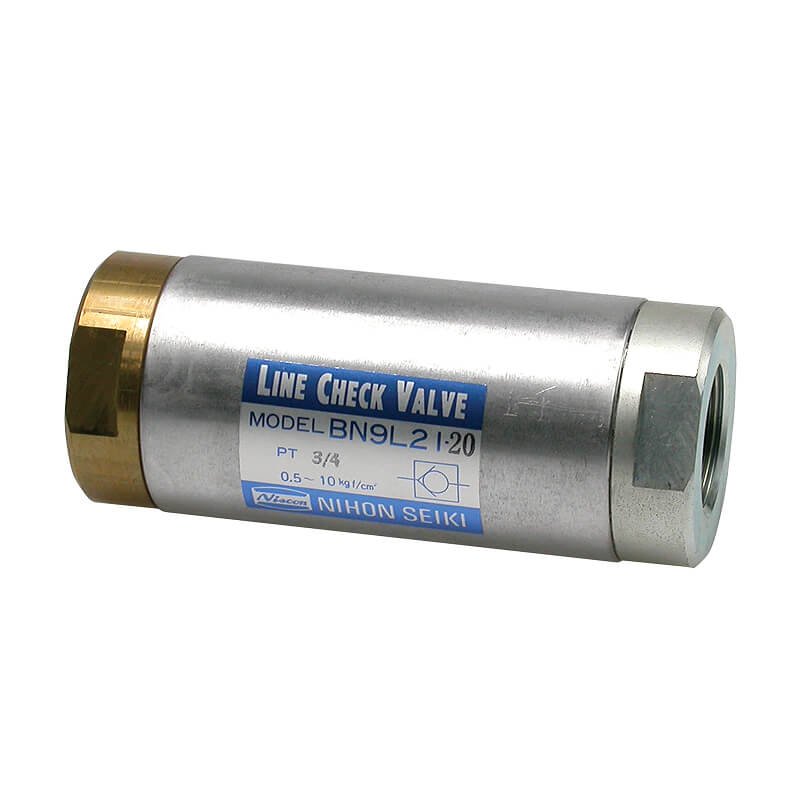

Mindman BN-9L21 Series: Check Valve – BN-9L21-25
SKU: BN-9L21-25
$320.00
Check Valve, Port Diameter: Rc1, Operating Fluid: Air/ÇåWater, Operating Pressure Range: 0~1MPa
10000 in stock
Features
Port Diameter Size: Rc1/4~Rc1,
Operating pressure range: 0~1 MPa, withstand pressure: 1.5 MPa.
Specifications
| Item | Specification |
|---|---|
| Port Size Code | 8A~25A |
| Port Thread Size | Rc1/4~Rc1 |
| Working Fluid | Air, Water |
| Operating Pressure Range | 0~1 MPa |
| Proof Pressure | 1.5 MPa |
| Effective Cross-sectional Area | 30mm²~200mm² |
| Ambient Temperature | -5°C~+60°C (non-freezing) |
| Weight | 0.1~0.7 kgf |
Ordering Code
BN-9L21-8
Model
Port Size
| 8 | : Rc 1/4 |
| 10 | : Rc 3/8 |
| 15 | : Rc 1/2 |
| 20 | : Rc 3/4 |
| 25 | : Rc 1 |
